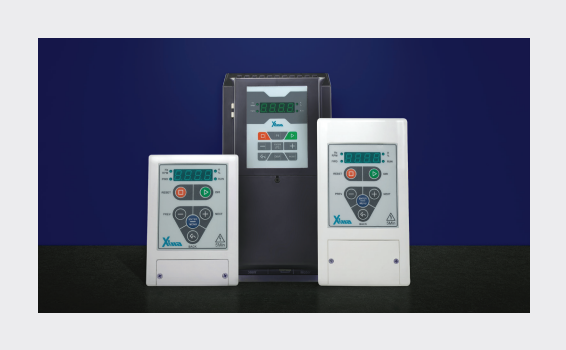

P Series VFDs
Pump & Booster Pump
P100A I P100B I P200C I P200D
Special algorithm for booster pump systems
Ability to operate multiple drives simultaneously with adjustable scheduling
Dedicated functions for the application of domestic and industrial pumps
Designed based on experiences and knowledge of the automation specialists
[purchase_link id="485" text="Purchase" style="button" color="brown" align="center"]
Technical Features
- Easy and fast settings (Plug & Play)
- Special functions for Dry mode detection
- Advanced Sleep function to reduce energy consumption when unloaded
- Closed Loop operation and compatibility with various sensor types
- Ability to change the software according to the needs of the industry
- Advanced PID controller
- Networking via RS485 and Modbus RTU protocol
Applications
- Booster Pump
- Industrial and domestic pumps
| Input | Output |
|---|---|
|
Power Supply |
12 V, 100 mA |
|
Power Supply for potentiometer |
10V, 8 mA |
|
Analog Input (Voltage) |
2 inputs, 0-10 V |
|
Analog Input (Current) |
1 input, 0-20 mA |
|
Digital Input |
5(6) programmable inputs, 30V, 5 mA |
|
High speed Input |
1 Input, 0-20 kHz, 10 - 24V, 10 mA |
|
Relay Output |
1(2) Programmable Relay(s), 250VAC, 1A
|
|
Transistor Output |
1 Programmable Open Collector Output (NPN)
24 V, 50 mA, 10 kHz |
|
Serial Communication |
1 RS-485 Modbus Interface
for Xima Touch (LAN Socket) |
