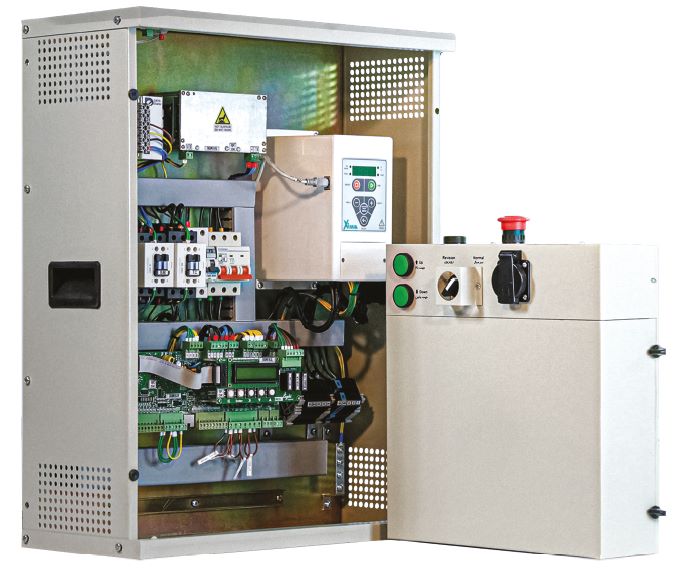

Datis Control Panel Xima L100 inverter
CTB Inspection Box included
• Efficient controller for low-rise buildings up to 10 stops
• Only 12 core travel cable connection to inspection Box
• Unbelievable smooth riding in Open-loop application
Technical Features
- Inspection Box Connection 12 core travel cable connection with car top board
- COP Connection Pre-wired, Multi-color cable included on inspection box
- LOP Connection - Parallel
- Cabin Position Information Magnetic sensors
- Safety Circuit Input 5 dedicated inputs for safety circuit (110V ac)
- Error Record Up to 16 Faults
Functions
- Password System :- Customer’s permission for sending activation password via SMS system
- Short floor :- Available by defining low-height floors in parameters
- Software Functions :- Park Floor Landing / Fire operation floor / Mask each LOP or COP Remap to reserve terminals / Auto-leveling after inspection
- Protection :- Digital Phase control, safe against voltage fluctuation / Phase sequence does not matter / Motor temperature control
General features
- Standard :- EN81-1
- Number of Stops :- Up to 10 (26 using Expansion card)
- Elevator Speed :- Up to 1m/s
- Motor Type Induction Motor :- (Asynchronous)
- Control Mode :- Open loop (v/f, Sensor less Vector)
- Inspection Box :- Included with Car Top Board
- Drive Communication :- Integrated Technology (Serial)
- LOP Type :- Full Collective, Up or Down Collective, Selective Collective
- Door Control :- Simultaneous operation of 2 doors without magnetic sensors
- Double Click Cancelling :- Car call cancellation by double tapping on the COP
- Announcement System :- Multi language voice announcement system (Mp3) (English, Turkish, Arabic and Persian)
- Rescue Mode :- Emergency mode supported through serial communication with Datis ARD
| Input | Output |
|---|---|
|
Power Supply |
12 V, 100 mA |
|
Power Supply for potentiometer |
10V, 8 mA |
|
Analog Input (Voltage) |
2 inputs, 0-10 V |
|
Analog Input (Current) |
1 input, 0-20 mA |
|
Digital Input |
5(6) programmable inputs, 30V, 5 mA |
|
High speed Input |
1 Input, 0-20 kHz, 10 - 24V, 10 mA |
|
Relay Output |
1(2) Programmable Relay(s), 250VAC, 1A
|
|
Transistor Output |
1 Programmable Open Collector Output (NPN)
24 V, 50 mA, 10 kHz |
|
Serial Communication |
1 RS-485 Modbus Interface
for Xima Touch (LAN Socket) |
