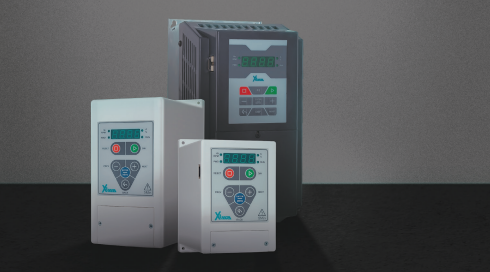

G Series VFDs
General purpose
G100A I G100B I G200C I G200D
Compatibility with various industrial applications
Advanced control functions
V/F and Sensorless Vector control methods
Smart Autotune function
Software Customization according to the needs of experts
Special tension control algorithm for use in rolling machines
and tension control industry
Technical Features
- PID and Hysteresis control
- Torque boost
- Networking via RS485 and Modbus RTU protocol
- Advanced motor protection
- Overload capacity: 150% current for 1 minute
- Linear, cubic, and user defined V/f pattern
- Sensorless vector control (Field Oriented Control)
- Brake resistor control unit
Applications
- Conveyors
- Extruders
- Rolling machines
- Injection machines
- Packing machines
- Knitting machines
- Drilling, turning, and CNC machines
- Fans
- Washing machines
| Input | Output |
|---|---|
|
Power Supply |
12 V, 100 mA |
|
Power Supply for potentiometer |
10V, 8 mA |
|
Analog Input (Voltage) |
2 inputs, 0-10 V |
|
Analog Input (Current) |
1 input, 0-20 mA |
|
Digital Input |
5(6) programmable inputs, 30V, 5 mA |
|
High speed Input |
1 Input, 0-20 kHz, 10 - 24V, 10 mA |
|
Relay Output |
1(2) Programmable Relay(s), 250VAC, 1A
|
|
Transistor Output |
1 Programmable Open Collector Output (NPN)
24 V, 50 mA, 10 kHz |
|
Serial Communication |
1 RS-485 Modbus Interface
for Xima Touch (LAN Socket) |
